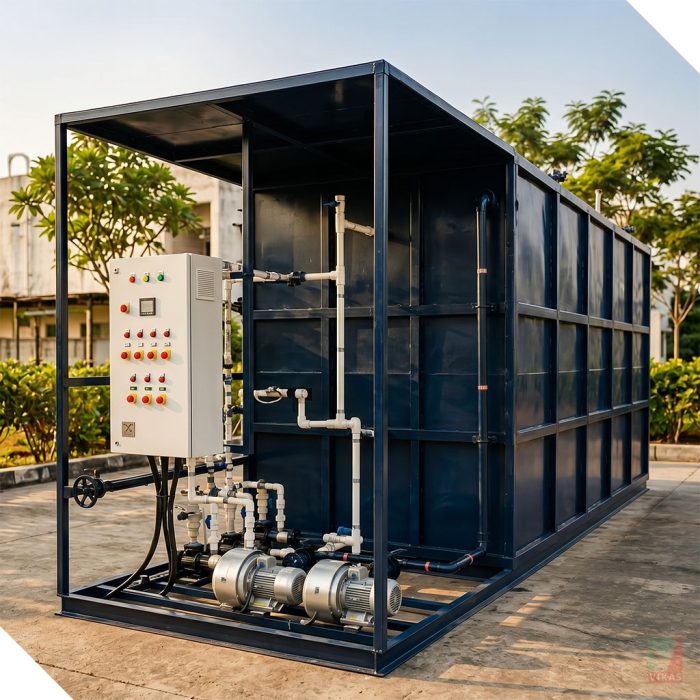

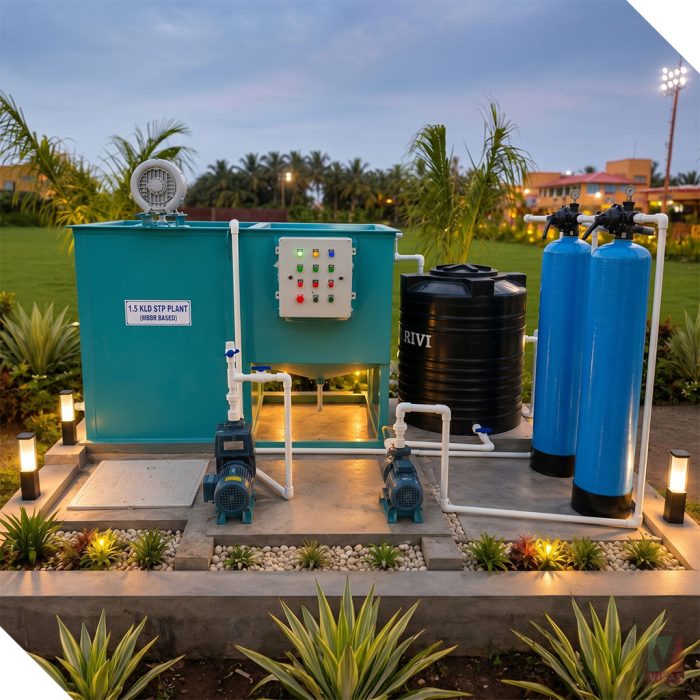

Sewage Treatment Plant MBBR Based
Overview
Moving Bed Biofilm Reactor (MBBR) technology is one of the most efficient and reliable biological wastewater treatment processes for domestic sewage treatment. The process utilizes specially designed bio-media suspended in an aeration tank, providing a large surface area for microbial growth and ensuring efficient removal of organic pollutants. MBBR-based STPs are compact, energy-efficient, easy to operate, and suitable for residential, commercial, institutional, and industrial applications.
Treatment Process Flow
Screen Chamber → Collection Tank → Equalization Tank → MBBR Aeration Tank → Secondary Clarifier → Pressure Sand Filter → Activated Carbon Filter → Disinfection System → Treated Water Tank → Reuse / Discharge
MBBR Technology Advantages
Feature | Benefit |
High Surface Area Bio Media | Enhanced biological treatment |
Compact Footprint | Less space requirement |
High BOD/COD Removal | Superior treatment efficiency |
Shock Load Resistance | Stable operation during flow fluctuations |
Low Sludge Generation | Reduced sludge handling costs |
Easy Expansion | Capacity can be increased by adding media |
Low Maintenance | Simple operation and monitoring |
Typical Treated Water Quality
Parameter | Outlet Quality |
pH | 6.5 – 8.5 |
BOD | < 10 mg/L |
COD | < 50 mg/L |
TSS | < 10 mg/L |
Oil & Grease | < 5 mg/L |
(Subject to proper design and operation conditions.)
Key Treatment Units
Treatment Unit | Function |
Bar Screen Chamber | Removal of large floating solids |
Collection Tank | Collection of raw sewage |
Equalization Tank | Flow balancing and homogenization |
MBBR Aeration Tank | Biological treatment using floating bio-media |
Air Blower System | Oxygen supply for microbial activity |
Secondary Clarifier | Separation of biological sludge |
Pressure Sand Filter (PSF) | Removal of fine suspended solids |
Activated Carbon Filter (ACF) | Removal of odor, color, and residual organics |
Disinfection System | Pathogen reduction using chlorination/UV |
Treated Water Tank | Storage of treated water for reuse |
Sludge Holding Tank | Collection of excess sludge |
Filter Press (Optional) | Sludge dewatering |
Applications
- Residential Apartments & Townships
- Commercial Complexes
- Hotels & Resorts
- Hospitals
- Educational Institutions
- Corporate Offices
- Industrial Facilities
- Government Buildings
- Housing Societies
Reuse Applications
- Gardening & Landscape Irrigation
- Toilet Flushing
- Cooling Tower Makeup Water
- Floor Washing
- Construction Activities
- Utility Water Applications
Vikas Engineering Solution
Vikas Engineering offers customized MBBR-based Sewage Treatment Plants (STPs) ranging from 5 KLD to 5000+ KLD, designed for maximum treatment efficiency, low operating costs, and long-term reliability.
- Scope of Supply
- Process Design & Engineering
- STP Equipment Manufacturing
- MBBR Bio Media System
- Diffused Aeration System
- PLC-Based Automation
- Installation & Commissioning
- Treated Water Reuse Systems
- AMC & Technical Support
Features
- Advanced MBBR Technology
- Compact Modular Design
- High Treatment Efficiency
- Low Power Consumption
- Minimal Operator Intervention
- Odor-Free Operation
- Easy Maintenance
- CPCB / SPCB Compliant Treated Water Quality
Why Choose Vikas Engineering?
- Proven STP Design Expertise
- Turnkey Project Execution
- Energy-Efficient Systems
- High-Quality Equipment
- Reliable After-Sales Service
- Customized Solutions for Every Project
Vikas Engineering provides advanced MBBR-based Sewage Treatment Plants for sustainable wastewater management, water reuse, and environmental compliance.
