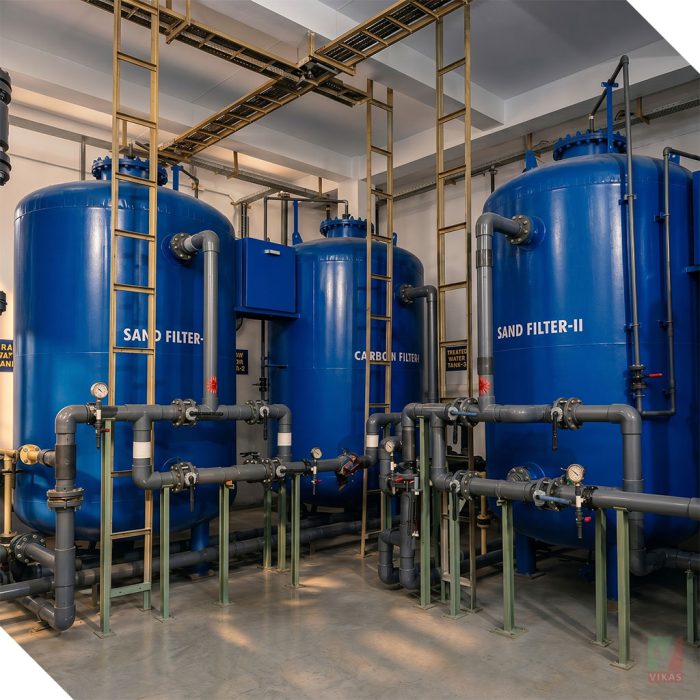

Multigrade Sand Filter
Overview
A Multi Grade Filter (MGF) is a high-performance depth filtration system designed to remove suspended solids, turbidity, colloidal matter, and fine particulate impurities from water. The filter contains multiple layers of specially graded filtration media with varying particle sizes, enabling superior filtration efficiency, higher dirt-holding capacity, and longer filtration cycles compared to conventional filters.
Available MOC (Material of Construction)
Sr. No. | MOC Type | Suitable Applications |
1 | Mild Steel (MS) Painted | Industrial water treatment applications |
2 | MS Rubber Lined (MSRL) | Corrosive water and wastewater treatment |
3 | FRP (Fiber Reinforced Plastic) | Water treatment and RO pretreatment systems |
4 | SS 304 | Food, beverage, pharmaceutical industries |
5 | SS 316 | Chemical and high-corrosion applications |
Technical Specifications
Parameter | Specification |
Filtration Type | Depth Filtration |
Filter Media | Multi-Layer Graded Silica Media |
Support Media | Graded Gravel |
Filtration Rate | 10 – 20 m³/hr/m² |
Operating Pressure | 2.5 – 6.0 kg/cm² |
Design Pressure | Up to 7.0 kg/cm² |
Turbidity Removal | Up to 98% |
Particle Removal | Up to 10 Micron |
Valve Type | Manual / Semi-Automatic / Automatic |
Mounting | Vertical / Horizontal |
Standard Scope of Supply
Item | Description |
Filter Vessel | MS / MSRL / FRP / SS304 / SS316 |
Multi Grade Filter Media | Multiple layers of graded silica |
Gravel Support Bed | Multi-layer support media |
Internal Piping | MS / SS / UPVC |
Valves | Butterfly / Ball Type |
Pressure Gauges | Inlet & Outlet |
Sampling Points | Optional |
Skid Mounted System | Optional |
Available Sizes
Vessel Diameter | Flow Capacity (Approx.) |
300 mm | 1 – 2 m³/hr |
450 mm | 3 – 5 m³/hr |
600 mm | 5 – 8 m³/hr |
900 mm | 10 – 15 m³/hr |
1200 mm | 18 – 25 m³/hr |
1500 mm | 30 – 40 m³/hr |
2000 mm | 50 – 70 m³/hr |
Customized | As per project requirement |
Typical Media Arrangement
Layer | Media Type |
Top Layer | Coarse Silica Media |
Middle Layer | Medium Grade Silica Media |
Lower Layer | Fine Silica Media |
Bottom Layer | Graded Gravel Support |
Performance
Parameter | Typical Reduction |
Turbidity | Up to 98% |
Suspended Solids | Up to 95% |
Fine Particles | Up to 10 Micron |
Silt & Colloids | Excellent Removal |
Applications
- Water Treatment Plants (WTP)
- Sewage Treatment Plants (STP)
- Effluent Treatment Plants (ETP)
- RO Pretreatment Systems
- Cooling Tower Water Treatment
- Boiler Feed Water Treatment
- Municipal Water Treatment
- Industrial Process Water Filtration
Benefits
- Superior Turbidity Removal
- Higher Dirt Holding Capacity
- Longer Filtration Runs
- Reduced Backwash Frequency
- Improved Water Quality
- Low Maintenance Cost
- Robust and Reliable Operation
- Extended Media Life
Why Choose Vikas Engineering?
- Customized Design & Manufacturing
- Premium Quality Filtration Media
- Multiple MOC Options Available
- High Filtration Efficiency
- Competitive Pricing
- Turnkey Installation Support
- Reliable After-Sales Service
Vikas Engineering manufactures Multi Grade Filters (MGF) in MS, MSRL, FRP, SS304, and SS316 construction for water treatment, wastewater treatment, RO pretreatment, and industrial filtration applications, ensuring superior removal of turbidity, suspended solids, and fine particulate matter.
