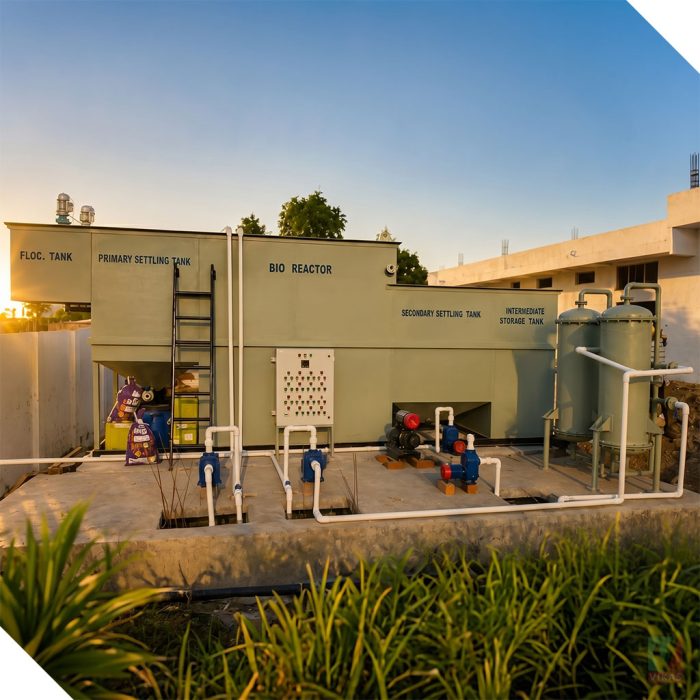

Effluent treatment Plant for Dairy Industry
Overview
Dairy industries generate wastewater from milk processing, equipment washing, pasteurization, CIP systems, packaging operations, and floor cleaning activities. The effluent typically contains high levels of organic matter, fats, oils & grease (FOG), proteins, lactose, suspended solids, and nutrients. An Effluent Treatment Plant (ETP) is designed to efficiently reduce pollution load, enable water reuse, and ensure compliance with environmental regulations.
Treatment Process Flow
Collection Tank → Equalization Tank → Oil & Grease Trap → pH Correction → DAF System → Biological Treatment (MBBR/FBBR/SBR) → Secondary Clarifier → Pressure Sand Filter → Activated Carbon Filter → UF/RO System (Optional) → Water Reuse / Discharge
Typical Wastewater Characteristics
Parameter | Typical Range |
pH | 4.5 – 11.0 |
COD | 2,000 – 8,000 mg/L |
BOD | 1,000 – 4,500 mg/L |
TSS | 200 – 2,000 mg/L |
Oil & Grease | 100 – 1,000 mg/L |
TKN | 50 – 300 mg/L |
Flow Variation | High |
Advanced Treatment Technologies
Technology | Application |
DAF System | Fat, oil & suspended solids removal |
MBBR/FBBR Technology | High-efficiency biological treatment |
SBR Technology | Compact treatment system |
Ultrafiltration (UF) | Fine solids removal |
Reverse Osmosis (RO) | Water recycling |
Multi Effect Evaporator (MEE) | RO reject treatment |
ATFD | Zero Liquid Discharge (ZLD) applications |
Key Treatment Units
Treatment Unit | Function |
Collection Tank | Collection of dairy wastewater |
Equalization Tank | Flow and pollutant load balancing |
Oil & Grease Trap | Removal of fats, oil and grease |
pH Correction System | Neutralization of wastewater |
DAF System | Removal of milk solids, fats and suspended solids |
Biological Reactor (MBBR/FBBR/SBR) | Reduction of BOD and COD |
Secondary Clarifier | Biomass separation |
Pressure Sand Filter (PSF) | Fine suspended solids removal |
Activated Carbon Filter (ACF) | Removal of color, odor and organics |
UF / RO System | Water recovery and reuse |
Sludge Dewatering System | Sludge thickening and dewatering |
Industries Served
- Milk Processing Plants
- Dairy Product Manufacturing Units
- Cheese Manufacturing Plants
- Butter & Ghee Production Units
- Ice Cream Manufacturing Units
- Milk Powder Plants
- Yogurt & Fermented Dairy Plants
- Dairy Cooperative Processing Facilities
Benefits
- High Reduction of BOD & COD
- Effective Removal of Fats, Oil & Grease
- Water Recycling & Reuse
- Reduced Fresh Water Consumption
- Compliance with CPCB/SPCB Norms
- Low Operating Cost
- Modular & Expandable Design
- Suitable for ZLD Applications
Vikas Engineering Solution
Vikas Engineering provides customized Dairy Effluent Treatment Plants ranging from 5 KLD to 5000+ KLD, designed for efficient treatment of high-organic-load wastewater with maximum water recovery and environmental compliance.
- Scope of Supply
- Process Design & Engineering
- ETP Equipment Manufacturing
- DAF Systems
- MBBR / FBBR / SBR Technology
- Water Reuse & ZLD Solutions
- PLC-Based Automation
- Installation & Commissioning
- AMC & Technical Support
Features
- High BOD & COD Removal Efficiency
- Effective FOG Removal System
- Compact & Energy-Efficient Design
- Low Sludge Generation
- High Water Recovery
- Automated Operation
- CPCB / SPCB Compliant System
Applications
Suitable for wastewater generated from:
- Milk Reception & Processing
- CIP (Clean-in-Place) Systems
- Pasteurization Units
- Cheese & Butter Production
- Ice Cream Manufacturing
- Packaging & Cleaning Operations
Customized Dairy Industry Effluent Treatment Plants for Sustainable Water Management, Resource Recovery, and Environmental Compliance.
