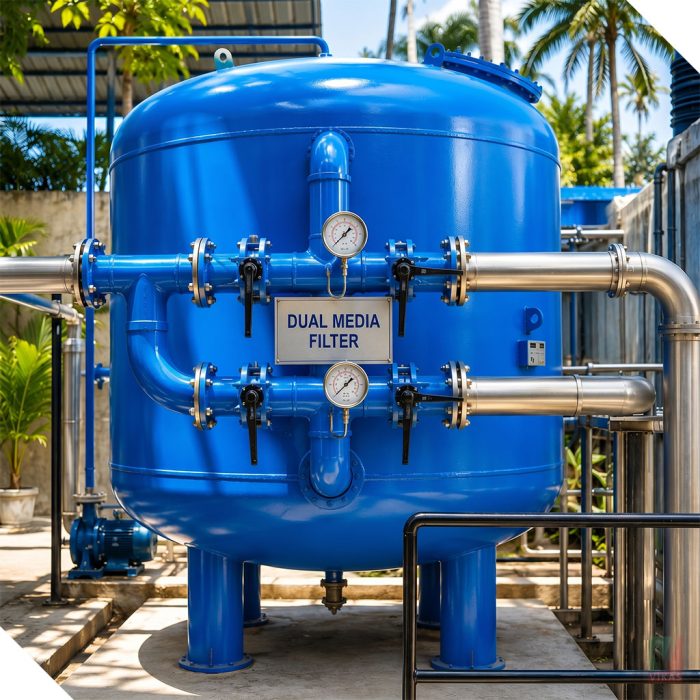

Dual Media Filter
Overview
A Dual Media Filter (DMF) is an advanced filtration system designed to remove suspended solids, turbidity, colloidal particles, and fine impurities from water. The filter utilizes two different filtration media layers, typically Anthracite and Silica Sand, providing higher dirt-holding capacity, longer filtration cycles, and superior filtration efficiency compared to conventional sand filters.
Available MOC (Material of Construction)
Sr. No. | MOC Type | Suitable Applications |
1 | Mild Steel (MS) Painted | Industrial water treatment applications |
2 | MS Rubber Lined (MSRL) | Corrosive water and wastewater treatment |
3 | FRP (Fiber Reinforced Plastic) | Water treatment and RO pretreatment systems |
4 | SS 304 | Food, beverage, pharmaceutical industries |
5 | SS 316 | Chemical and high-corrosion applications |
Technical Specifications
Parameter | Specification |
Filtration Type | Dual Media Filtration |
Filter Media | Anthracite + Silica Sand |
Support Media | Graded Gravel |
Filtration Rate | 10 – 20 m³/hr/m² |
Operating Pressure | 2.5 – 6.0 kg/cm² |
Design Pressure | Up to 7.0 kg/cm² |
Turbidity Removal | Up to 95–98% |
Particle Removal | Up to 10–20 Micron |
Valve Type | Manual / Semi-Automatic / Automatic |
Mounting | Vertical / Horizontal |
Standard Scope of Supply
Item | Description |
Filter Vessel | MS / MSRL / FRP / SS304 / SS316 |
Anthracite Media | High-grade filtration media |
Silica Sand Media | Graded quartz silica sand |
Gravel Support Bed | Multi-layer support media |
Internal Piping | MS / SS / UPVC |
Valves | Butterfly / Ball Type |
Pressure Gauges | Inlet & Outlet |
Sampling Points | Optional |
Skid Mounted System | Optional |
Available Sizes
Vessel Diameter | Flow Capacity (Approx.) |
300 mm | 1 – 2 m³/hr |
450 mm | 3 – 5 m³/hr |
600 mm | 5 – 8 m³/hr |
900 mm | 10 – 15 m³/hr |
1200 mm | 18 – 25 m³/hr |
1500 mm | 30 – 40 m³/hr |
2000 mm | 50 – 70 m³/hr |
Customized | As per project requirement |
Typical Filtration Media Arrangement
Layer | Media |
Top Layer | Anthracite Coal |
Middle Layer | Silica Sand |
Bottom Layer | Graded Gravel Support |
Applications
- Water Treatment Plants (WTP)
- Sewage Treatment Plants (STP)
- Effluent Treatment Plants (ETP)
- RO Pretreatment Systems
- Cooling Tower Water Treatment
- Boiler Feed Water Systems
- Municipal Water Treatment
- Industrial Process Water Filtration
Benefits
- Higher Dirt Holding Capacity
- Higher Dirt Holding Capacity
- Lower Backwash Frequency
- Improved Filtration Efficiency
- Reduced Pressure Drop
- Better Turbidity Removal
- Low Maintenance Cost
- Long Service Life
Vikas Engineering Solution
Vikas Engineering offers customized Metal Industry ETP solutions ranging from 5 KLD to 5000+ KLD, designed to treat heavy metal-bearing wastewater while maximizing water recovery and ensuring environmental compliance.
- Scope of Supply
- Process Design & Engineering
- ETP Equipment Manufacturing
- Heavy Metal Removal Systems
- DAF & Clarification Systems
- RO, MEE & ZLD Solutions
- PLC-Based Automation
- Installation & Commissioning
- AMC & Technical Support
Features
- High Heavy Metal Removal Efficiency
- Advanced Chemical Treatment Process
- Compact Modular Design
- Low Operating Cost
- High Water Recovery Rate
- Automated Operation
- CPCB / SPCB Compliant System
Applications
Suitable for wastewater generated from:
- Pickling Operations
- Metal Surface Treatment
- Degreasing & Cleaning Processes
- Phosphating Lines
- Galvanizing Units
- Machining & Fabrication Activities
- Metal Finishing Operations
- Cooling and Rinse Water Systems
Why Choose Vikas Engineering?
- Customized Design & Manufacturing
- Premium Quality Filter Media
- Multiple MOC Options Available
- High Filtration Efficiency
- Competitive Pricing
- Turnkey Installation Support
- Reliable After-Sales Service
Vikas Engineering manufactures Dual Media Filters in MS, MSRL, FRP, SS304, and SS316 construction for water treatment, wastewater treatment, RO pretreatment, and industrial filtration applications, ensuring superior turbidity and suspended solids removal.
