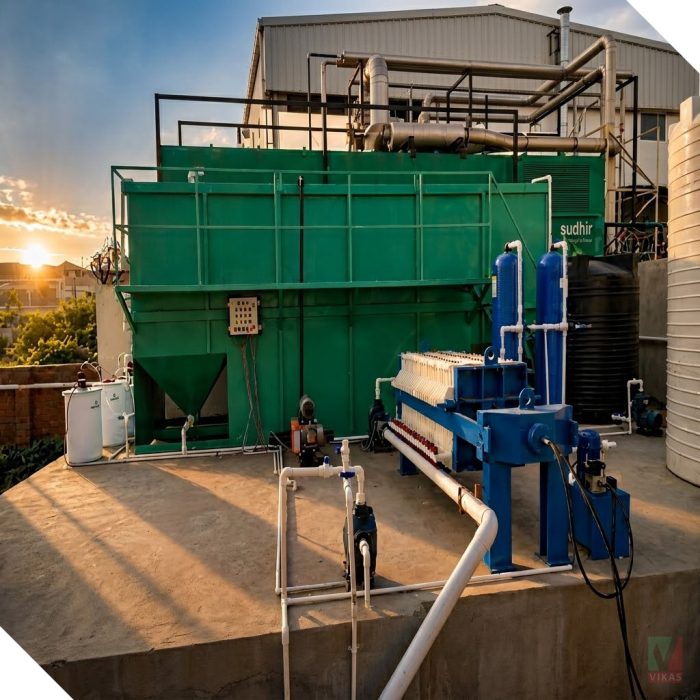

Effluent treatment Plant for Chemical Industry
Overview
Chemical industries generate complex wastewater containing high COD, BOD, TDS, suspended solids, acids, alkalis, oils, heavy metals, toxic organics, and color. An Effluent Treatment Plant (ETP) is designed to remove these contaminants and ensure compliance with environmental discharge norms while enabling water reuse and resource recovery.
Treatment Process Flow
Collection & Equalization → pH Correction → Coagulation & Flocculation → Primary Clarification → Biological Treatment (MBBR/FBBR/SBR/ASP) → Secondary Clarification → Pressure Sand Filter → Activated Carbon Filter → UF/RO System (Optional) → Treated Water Reuse/Discharge
Typical Wastewater Characteristics
|
Parameter |
Typical
Range |
|
pH |
2.0 –
12.0 |
|
COD |
1,000
– 20,000 mg/L |
|
BOD |
300 –
8,000 mg/L |
|
TSS |
200 –
5,000 mg/L |
|
Oil
& Grease |
50 –
1,000 mg/L |
|
TDS |
1,500
– 50,000 mg/L |
|
Heavy
Metals |
Variable |
Vikas Engineering provides customized Chemical Industry ETP solutions ranging from 1 KLD to 5000+ KLD, including:
- Design & Engineering
- Manufacturing & Supply
- Installation & Commissioning
- Automation & Instrumentation
- Water Reuse & ZLD Systems
- Annual Maintenance Services (AMC)
Customized ETP Solutions for Chemical Industries – Ensuring Compliance, Sustainability & Water Recovery.
Industries Served
- Specialty Chemicals
- Bulk Chemicals
- Dyes & Pigments
- Agrochemicals
- Petrochemicals
- Resins & Polymers
- Paints & Coatings
- Pharmaceuticals
- Textile Chemicals
- Fine Chemicals
Benefits
- Reduction of COD, BOD, TSS & Toxic Pollutants
- Compliance with Pollution Control Board Norms
- Water Reuse & Recovery
- Reduced Fresh Water Consumption
- Environmentally Sustainable Operation
- Compatible with ZLD Systems
- Low Operating Cost with Automated Controls
Key Treatment Units
| Treatment Stage | Function |
| Collection Tank | Collects wastewater from various process areas |
| Equalization Tank | Homogenizes flow and pollutant load |
| pH Correction System | Neutralizes acidic or alkaline wastewater |
| Flash Mixer | Rapid chemical mixing |
| Flocculation Tank | Formation of settleable flocs |
| Primary Clarifier | Removal of suspended solids and sludge |
| Biological Reactor (MBBR/FBBR) | Reduction of BOD and COD |
| Secondary Clarifier | Biomass separation |
| Pressure Sand Filter | Fine suspended solids removal |
| Activated Carbon Filter | Color, odor and organic removal |
| UF/RO System | Water recovery and reuse |
| Sludge Handling System | Sludge thickening and dewatering |
Advanced Treatment Options
Technology | Application |
DAF System | Oil & grease removal |
Advanced Oxidation Process (AOP) | Refractory COD reduction |
Ozonation | Color and odor removal |
Multi Effect Evaporator (MEE) | High TDS wastewater |
ATFD | ZLD applications |
Electro-Oxidation | Complex chemical effluents |
