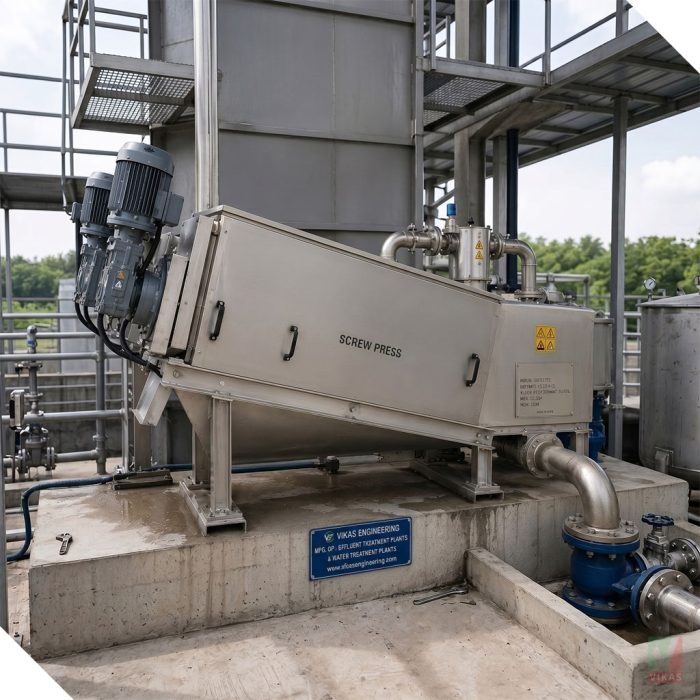

Screw Press
Overview
A Screw Press is an advanced sludge dewatering system designed to reduce sludge volume by separating water from sludge through a slow-speed screw mechanism and filtration screens. The system provides continuous operation, low power consumption, minimal maintenance, and efficient sludge dewatering for various wastewater treatment applications.
Screw Press technology is widely used in STP, ETP, CETP, WTP, Food Processing, Dairy, Chemical, Pharmaceutical, and Industrial Wastewater Treatment Plants.
Treatment Process Flow
Sludge Holding Tank → Polymer Dosing Unit → Flocculation Tank → Screw Press → Dewatered Sludge Cake → Filtrate Collection Tank
Working Principle
The conditioned sludge is fed into the screw press where a rotating screw conveys the sludge through a series of filtration screens. As the volume decreases along the screw shaft, pressure gradually increases, forcing water through the screens while retaining solids. The dewatered sludge cake is discharged from the outlet, and filtrate is collected separately.
Technical Specifications
Parameter | Specification |
Technology | Screw Press Dewatering |
Operation | Continuous |
Sludge Type | Biological & Chemical Sludge |
Cake Solids | 15–30% (Typical) |
Feed Solids | 0.2–5.0% |
Control System | Manual / PLC Based |
Power Consumption | Low |
Washing Requirement | Minimal |
Main Components
Equipment | Function |
Sludge Feed System | Sludge transfer |
Polymer Dosing Unit | Sludge conditioning |
Flocculation Tank | Floc formation |
Screw Press Assembly | Sludge dewatering |
Filtration Screens | Solid-liquid separation |
Dewatered Cake Discharge | Sludge cake collection |
Filtrate Collection System | Water collection |
Control Panel | Operation & monitoring |
Available MOC (Material of Construction)
Component | MOC Options |
Screw Shaft | SS304 / SS316 |
Filter Rings | SS304 / SS316 |
Flocculation Tank | SS304 / SS316 / FRP |
Polymer Preparation Unit | SS304 / HDPE |
Piping | UPVC / SS304 / SS316 |
Structural Frame | SS304 / MS Painted |
Performance
Parameter | Typical Value |
Sludge Cake Dryness | 15–30% |
Solids Recovery | Up to 95–98% |
Water Recovery | High |
Polymer Consumption | Low |
Power Consumption | Very Low |
Capacity Range
Model | Sludge Throughput |
VE-SP-101 | 0.5 – 2 m³/hr |
VE-SP-201 | 2 – 5 m³/hr |
VE-SP-301 | 5 – 10 m³/hr |
VE-SP-401 | 10 – 20 m³/hr |
VE-SP-501 | 20 – 40 m³/hr |
Customized Models | As per requirement |
Applications
- Sewage Treatment Plants (STP)
- Effluent Treatment Plants (ETP)
- Common Effluent Treatment Plants (CETP)
- Water Treatment Plants (WTP)
- Dairy Industries
- Food & Beverage Industries
- Chemical Industries
- Pharmaceutical Industries
- Textile Industries
- Municipal Wastewater Treatment Plants
Features
- Continuous Automatic Operation
- Low Power Consumption
- Self-Cleaning Filtration System
- Compact Footprint
- Low Water Consumption
- Minimal Operator Attention
- Low Noise Operation
- Long Equipment Life
Benefits
- Reduced Sludge Disposal Cost
- Low Operating Cost
- High Solids Recovery
- Minimal Maintenance Requirement
- Reduced Water Consumption
- Compact and Modular Design
- Suitable for 24-Hour Operation
- Easy Installation and Operation
Typical Industries Served
- Municipal STPs
- Industrial ETPs
- Dairy Processing Plants
- Food & Beverage Industries
- Pharmaceutical Industries
- Textile Processing Units
- Chemical Industries
- Paper & Pulp Industries
Vikas Engineering Solution
- Scope of Supply
- Screw Press Dewatering Unit
- Polymer Dosing System
- Flocculation Tank
- Sludge Feed Pump
- Filtrate Collection System
- PLC-Based Automation
- Installation & Commissioning
- AMC & Technical Support
Why Choose Vikas Engineering?
- Customized Sludge Dewatering Solutions
- SS304 / SS316 Construction
- Low Power & Water Consumption
- High Solids Recovery Efficiency
- Compact Skid-Mounted Design
- Turnkey STP & ETP Solutions
- Reliable After-Sales Support
Available Capacity Range: 0.5 m³/hr to 40+ m³/hr Sludge Throughput
Suitable for Municipal, Industrial, Commercial, and Infrastructure Wastewater Treatment Applications.
Vikas Engineering supplies high-performance Screw Press Sludge Dewatering Systems for efficient sludge volume reduction, low operating cost, and reliable continuous operation in STP, ETP, CETP, and industrial wastewater treatment plants.
