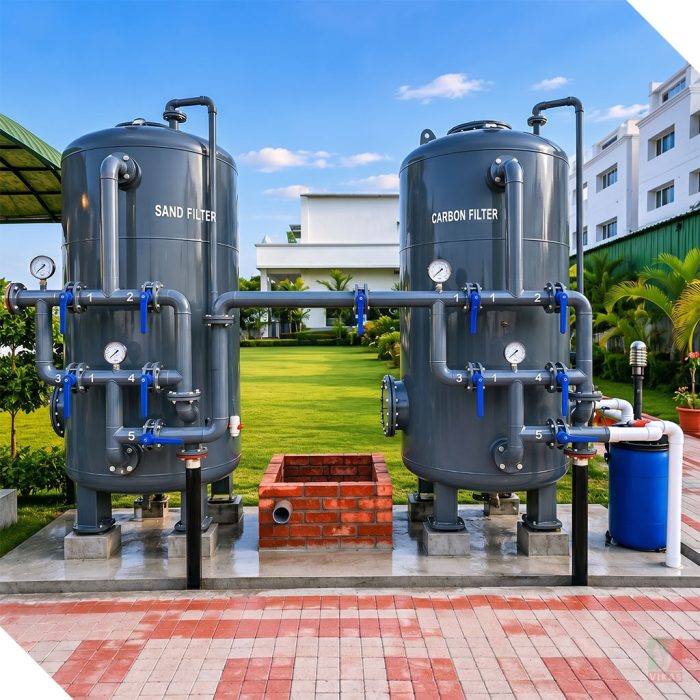

Activated Carbon Filter
Overview
An Activated Carbon Filter (ACF) is designed to remove residual chlorine, color, odor, taste, organic impurities, dissolved contaminants, and trace chemicals from water and wastewater. Activated carbon media adsorbs pollutants, resulting in high-quality filtered water suitable for industrial processes, RO pretreatment, and water reuse applications.
Available MOC (Material of Construction)
Sr. No. | MOC Type | Suitable Applications |
1 | Mild Steel (MS) Painted | Industrial water treatment and utility applications |
2 | MS Rubber Lined (MSRL) | Corrosive water and wastewater treatment |
3 | FRP (Fiber Reinforced Plastic) | Water treatment plants and RO pretreatment systems |
4 | SS 304 | Food, beverage, pharmaceutical, and process industries |
5 | SS 316 | Chemical, pharmaceutical, and high-corrosion applications |
Technical Specifications
Parameter | Specification |
Filtration Type | Activated Carbon Adsorption |
Media | Granular Activated Carbon (GAC) |
Filtration Rate | 8 – 15 m³/hr/m² |
Operating Pressure | 2.5 – 6.0 kg/cm² |
Design Pressure | Up to 7.0 kg/cm² |
Chlorine Removal | Up to 99% |
Color & Odor Removal | Excellent |
Valve Type | Manual / Semi-Automatic / Automatic |
Mounting | Vertical / Horizontal |
Standard Scope of Supply
Item | Description |
Filter Vessel | MS / MSRL / FRP / SS304 / SS316 |
Activated Carbon Media | High Iodine Value Activated Carbon |
Gravel Support Bed | Multi-layer Support Media |
Internal Piping | MS / SS / UPVC |
Valves | Butterfly / Ball Type |
Pressure Gauges | Inlet & Outlet |
Sampling Points | Optional |
Skid Mounted System | Optional |
Available Sizes
Vessel Diameter | Flow Capacity (Approx.) |
300 mm | 1 – 2 m³/hr |
450 mm | 3 – 5 m³/hr |
600 mm | 5 – 8 m³/hr |
900 mm | 10 – 15 m³/hr |
1200 mm | 18 – 25 m³/hr |
1500 mm | 30 – 40 m³/hr |
2000 mm | 50 – 70 m³/hr |
Customized | As per project requirement |
Applications
- Sewage Treatment Plants (STP)
- Effluent Treatment Plants (ETP)
- Water Treatment Plants (WTP)
- RO Pretreatment Systems
- Food & Beverage Industries
- Pharmaceutical Industries
- Chemical Industries
- Process Water Treatment
Features
- Effective Color & Odor Removal
- High Organic Contaminant Removal
- Chlorine Reduction up to 99%
- Low Maintenance Requirement
- Easy Backwashing Operation
- Long Media Life
- Robust Construction
- Available in Multiple MOC Options
Why Choose Vikas Engineering?
- Customized Design & Manufacturing
- Premium Quality Activated Carbon Media
- Multiple MOC Options Available
- Competitive Pricing
- Turnkey Installation Support
- Reliable After-Sales Service
Vikas Engineering manufactures Activated Carbon Filters in MS, MSRL, FRP, SS304, and SS316 construction for water treatment, wastewater treatment, RO pretreatment, and industrial filtration applications.
