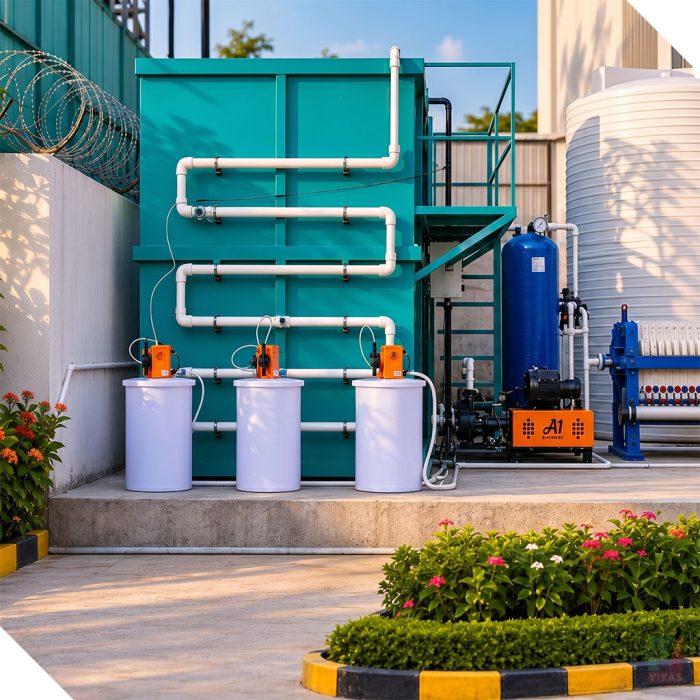

Effluent treatment Plant for Food Industry
Overview
Food processing industries generate wastewater from washing, processing, cooking, cleaning, packaging, and production operations. The effluent typically contains high levels of organic matter, suspended solids, fats, oils & grease (FOG), starch, sugars, proteins, and nutrients. An Effluent Treatment Plant (ETP) is designed to efficiently treat this wastewater, reduce pollution load, enable water reuse, and ensure compliance with environmental regulations.
Treatment Process Flow
Collection Tank → Equalization Tank → Oil & Grease Trap → pH Correction → DAF System → Biological Treatment (MBBR/FBBR/SBR) → Secondary Clarifier → Pressure Sand Filter → Activated Carbon Filter → UF/RO System (Optional) → Water Reuse / Discharge
Typical Wastewater Characteristics
Parameter | Typical Range |
pH | 4.5 – 10.0 |
COD | 1,000 – 10,000 mg/L |
BOD | 500 – 5,000 mg/L |
TSS | 200 – 3,000 mg/L |
Oil & Grease | 50 – 1,000 mg/L |
Nitrogen | 20 – 200 mg/L |
Phosphorus | 5 – 100 mg/L |
Advanced Treatment Technologies
Technology | Application |
DAF System | FOG and suspended solids removal |
MBBR/FBBR Technology | High-rate biological treatment |
SBR Technology | Compact treatment solution |
Anaerobic Treatment (UASB) | High-strength wastewater treatment |
Ultrafiltration (UF) | Fine particle removal |
Reverse Osmosis (RO) | Water recovery and reuse |
MEE / ATFD | ZLD applications |
Key Treatment Units
Treatment Unit | Function |
Collection Tank | Collection of process wastewater |
Equalization Tank | Flow and pollutant load balancing |
Oil & Grease Trap | Removal of fats, oils and grease |
pH Correction System | Neutralization of wastewater |
DAF System | Removal of suspended solids and FOG |
Biological Reactor (MBBR/FBBR/SBR) | Reduction of BOD and COD |
Secondary Clarifier | Biomass separation |
Pressure Sand Filter (PSF) | Fine suspended solids removal |
Activated Carbon Filter (ACF) | Removal of odor, color and organics |
UF / RO System | Water recycling and reuse |
Sludge Dewatering System | Sludge thickening and dewatering |
Industries Served
- Food Processing Plants
- Fruit & Vegetable Processing Units
- Beverage Manufacturing Industries
- Snack Food Manufacturing Plants
- Bakery & Confectionery Units
- Ready-to-Eat Food Industries
- Meat & Poultry Processing Plants
- Seafood Processing Industries
- Spice Processing Units
- Edible Oil Refineries
Benefits
- High BOD & COD Removal Efficiency
- Effective Fats, Oils & Grease Removal
- Water Recycling & Reuse
- Reduced Fresh Water Consumption
- Compliance with CPCB/SPCB Norms
- Low Operating Cost
- Modular & Expandable Design
- Suitable for ZLD Applications
Vikas Engineering Solution
Vikas Engineering provides customized Food Industry ETP solutions ranging from 5 KLD to 5000+ KLD, designed for efficient treatment of high-organic-load wastewater while maximizing water recovery and environmental compliance.
- Scope of Supply
- Process Design & Engineering
- ETP Equipment Manufacturing
- DAF Systems
- MBBR / FBBR / SBR Technology
- RO, MEE & ZLD Systems
- PLC-Based Automation
- Installation & Commissioning
- AMC & Technical Support
Features
- High Organic Load Treatment Capability
- Efficient Oil & Grease Removal
- Compact Modular Design
- Low Energy Consumption
- High Water Recovery
- Automated Operation
- CPCB / SPCB Compliant System
Applications
Suitable for wastewater generated from:
- Raw Material Washing
- Food Processing Operations
- Cooking & Production Lines
- Equipment & Floor Cleaning
- Packaging Operations
- Beverage Manufacturing
- Fruit & Vegetable Processing
- Meat & Poultry Processing
Why Choose Vikas Engineering?
- Customized Process Design
- Proven Biological Treatment Technologies
- High Water Recovery Systems
- Integrated Reuse & ZLD Solutions
- Reliable Technical Support
- Complete Turnkey Project Execution
Customized Effluent Treatment Plants for Food Industries – Ensuring Sustainable Water Management, Regulatory Compliance, and Maximum Resource Recovery.
